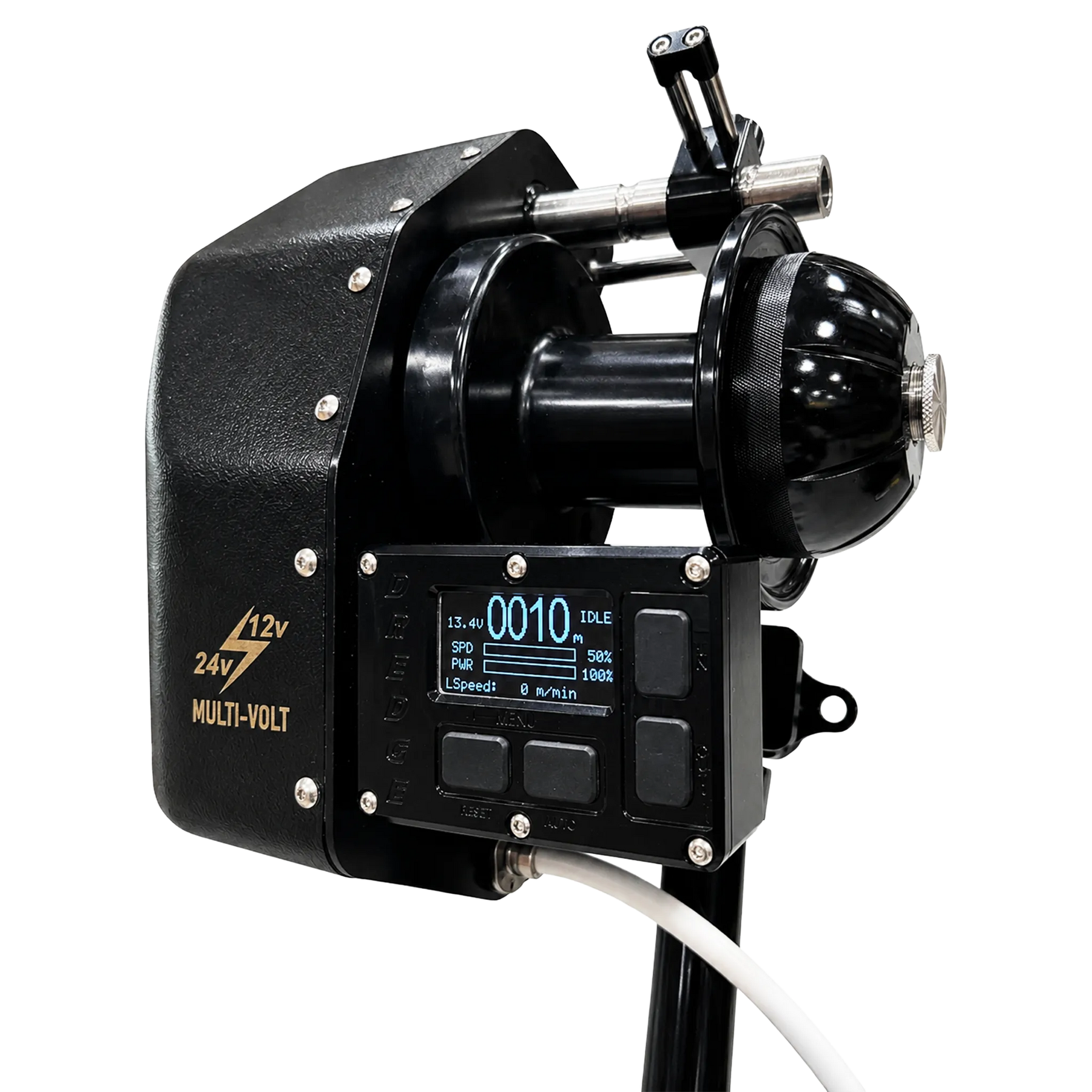

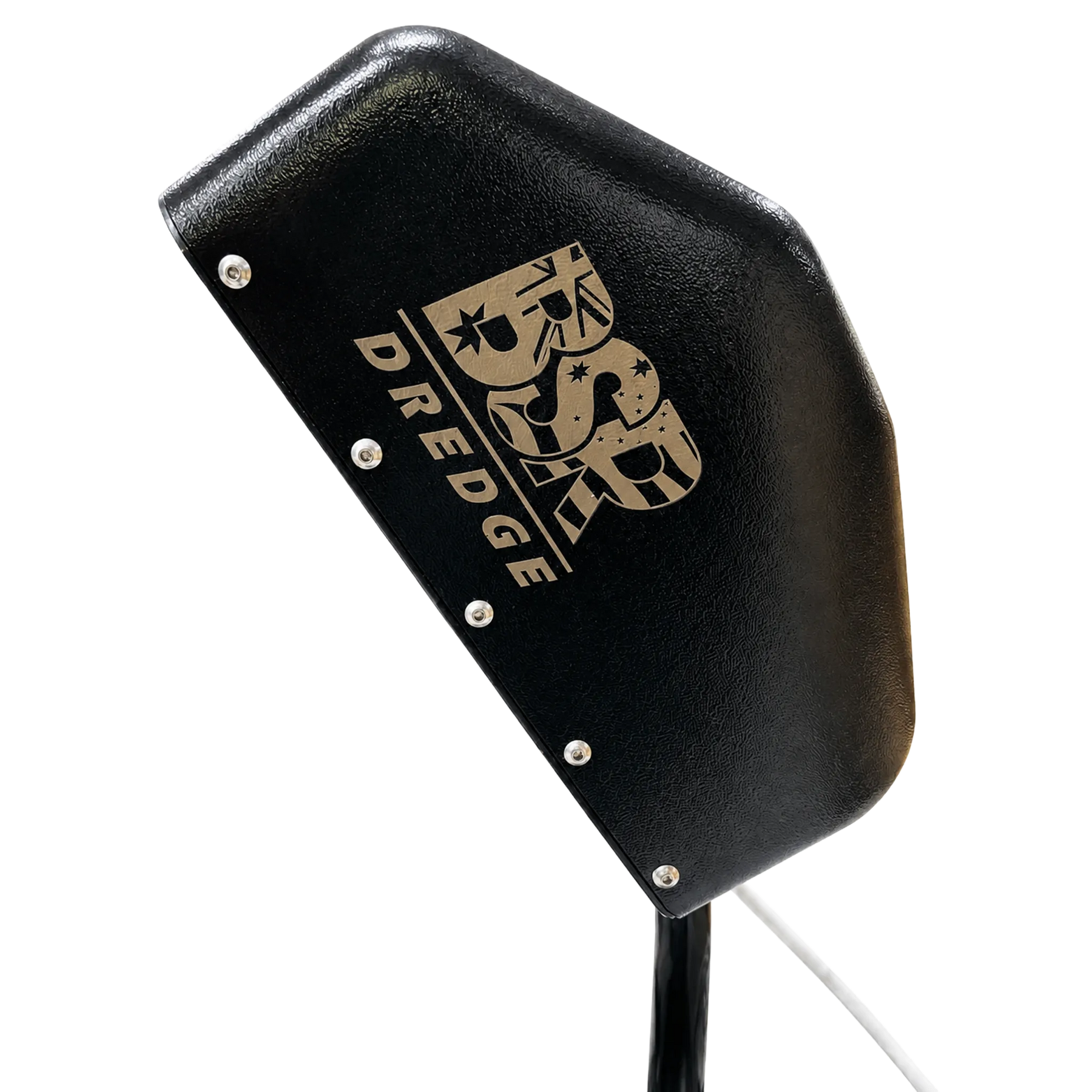

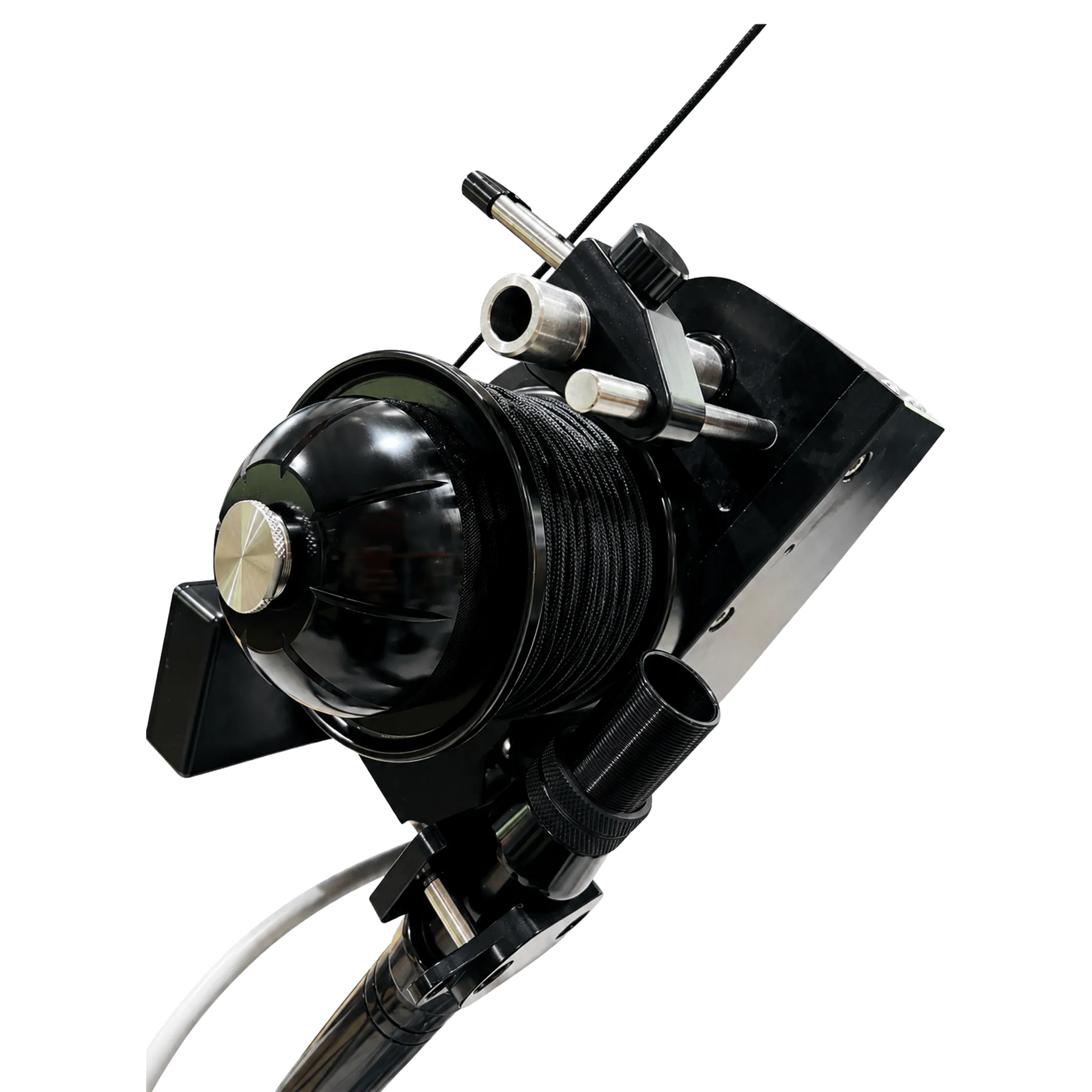

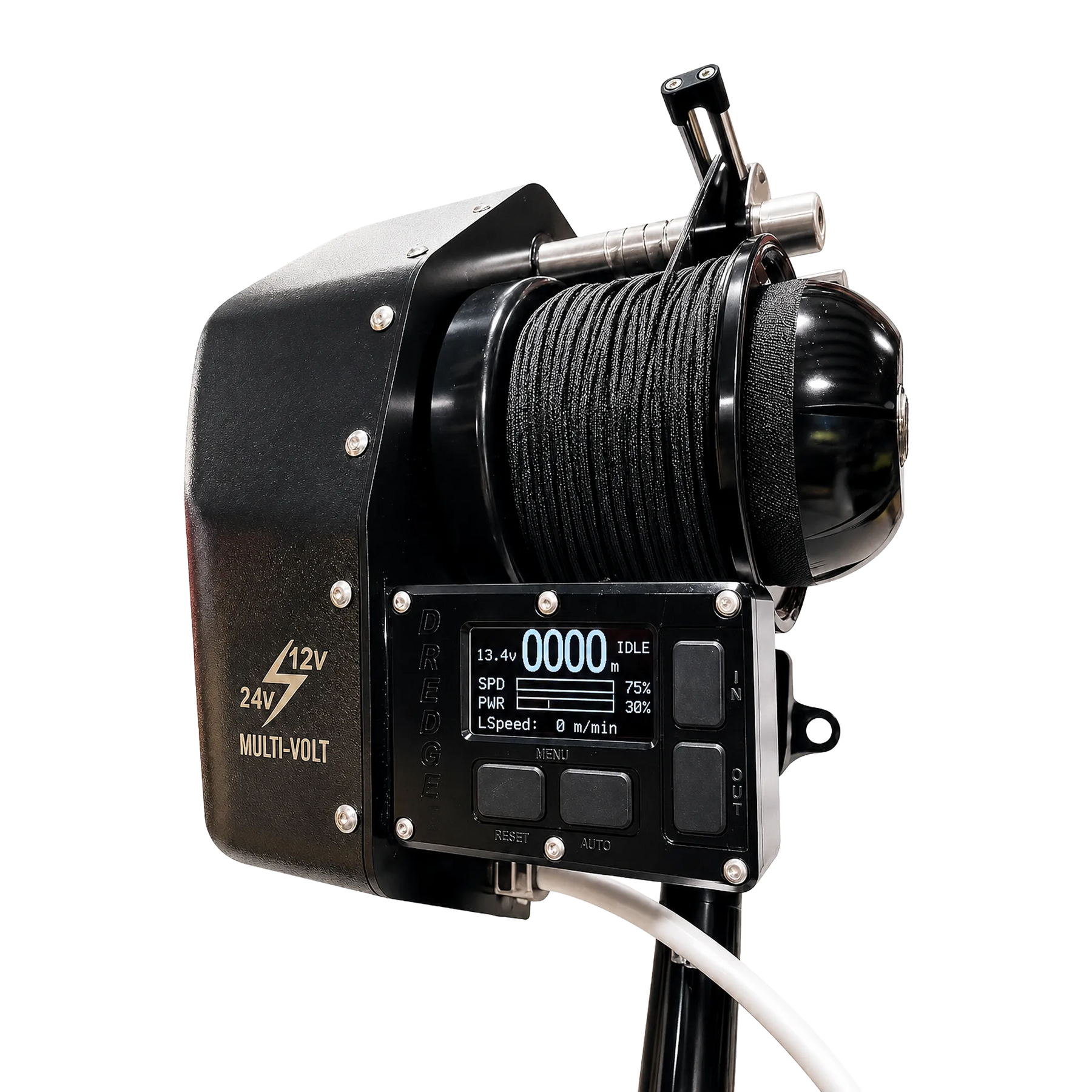

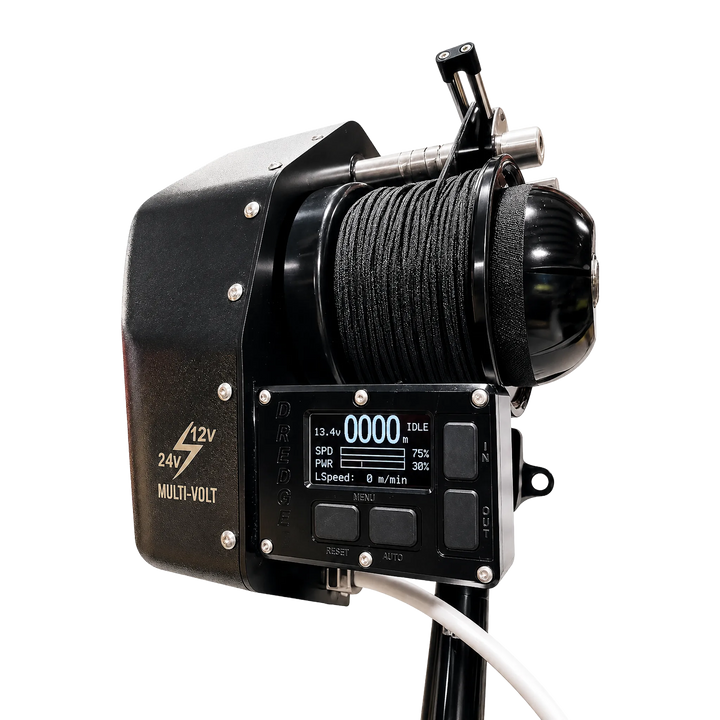

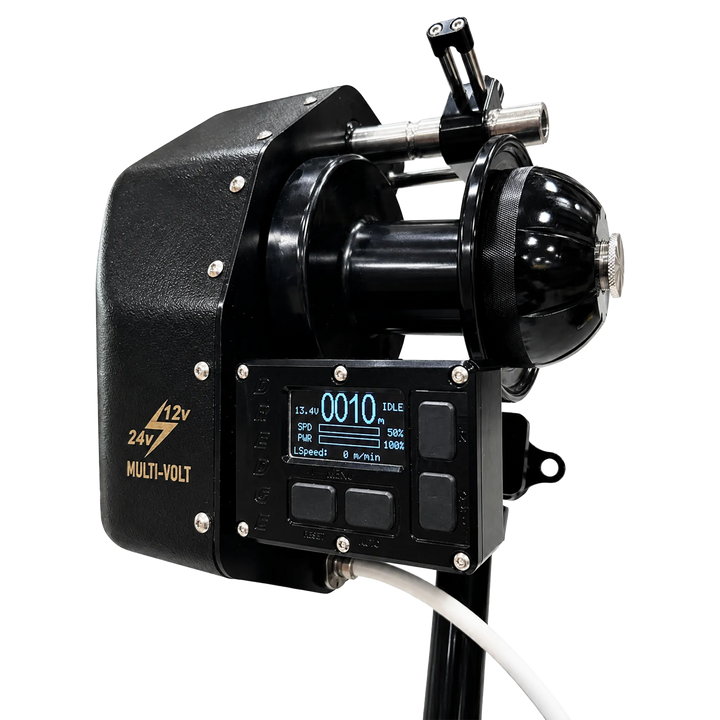

Dredge Reel

Every once in a while a product comes along that ticks every box so well, you wonder how you ever managed without it. The BSR Dredge Reel is exactly that product.

Purpose-built for retrieving teasers and dredges of every size, the BSR Dredge Reel is equally at home on trailer boats, game boats, and large sportfishing vessels. Whether you're pulling a single teaser or a full-sized weighted dredge, it delivers unmatched power, speed, precision, and usability.

What truly sets the BSR Dredge Reel apart is its intelligent functionality. It doesn't just retrieve automatically, it can also automatically deploy to a user-programmed distance and stop exactly where you want it. There's no need to hold a button or manually free-spool your dredge back into position, unless you want to. Simply press a button and let the reel do the work.

Featuring Auto In, Auto Out, Bluetooth connectivity, and exceptional pulling power, the BSR Dredge Reel is engineered to make dredge management easier, faster, and more efficient than ever before. The BSR Dredge reels have plenty of torque to spare, so feel free to run a single pully dredge and optimize speed. With the free LSM BSR app, you can run multiple reels individually or as one, anywhere on your boat.

Once you fish with the BSR Dredge Reel, you'll never want to troll for billfish without it.

VOLTAGE

12-24 Multivolt in the same unit.

MODELS

Dredge-RM

*Reel foot with clamp

Dredge-HM

*Mounting bracket with fittings

Dredge-RF

*Hard Mount with Remote Facia. Leads are mfg. to custom length, contact us for details prior to purchase.

Standard inclusions:

70m x 3mm race spec line (900lb breaking strain)
10ft power lead with plug
Hard mount power outlet with fittings
Shaft retaining bolt tool

Spool capacity:

70m x 3mm
100m x 2.5mm
150m x 2mm

Size:

W 295mm (11.5 inch)
L 332mm (13 inch)
H 178mm (7 inch)

Weight:

12kg (26lb)

Selling notes:

Pre-sale, orders shipping August
Free Australia-wide delivery

PERFORMANCE DATA

Pulling power:

Empty spool: 102kg (225lb)
Full spool: 57kg (125lb)

Speed:

12v: 90m per minute
24v: 140m per minute
